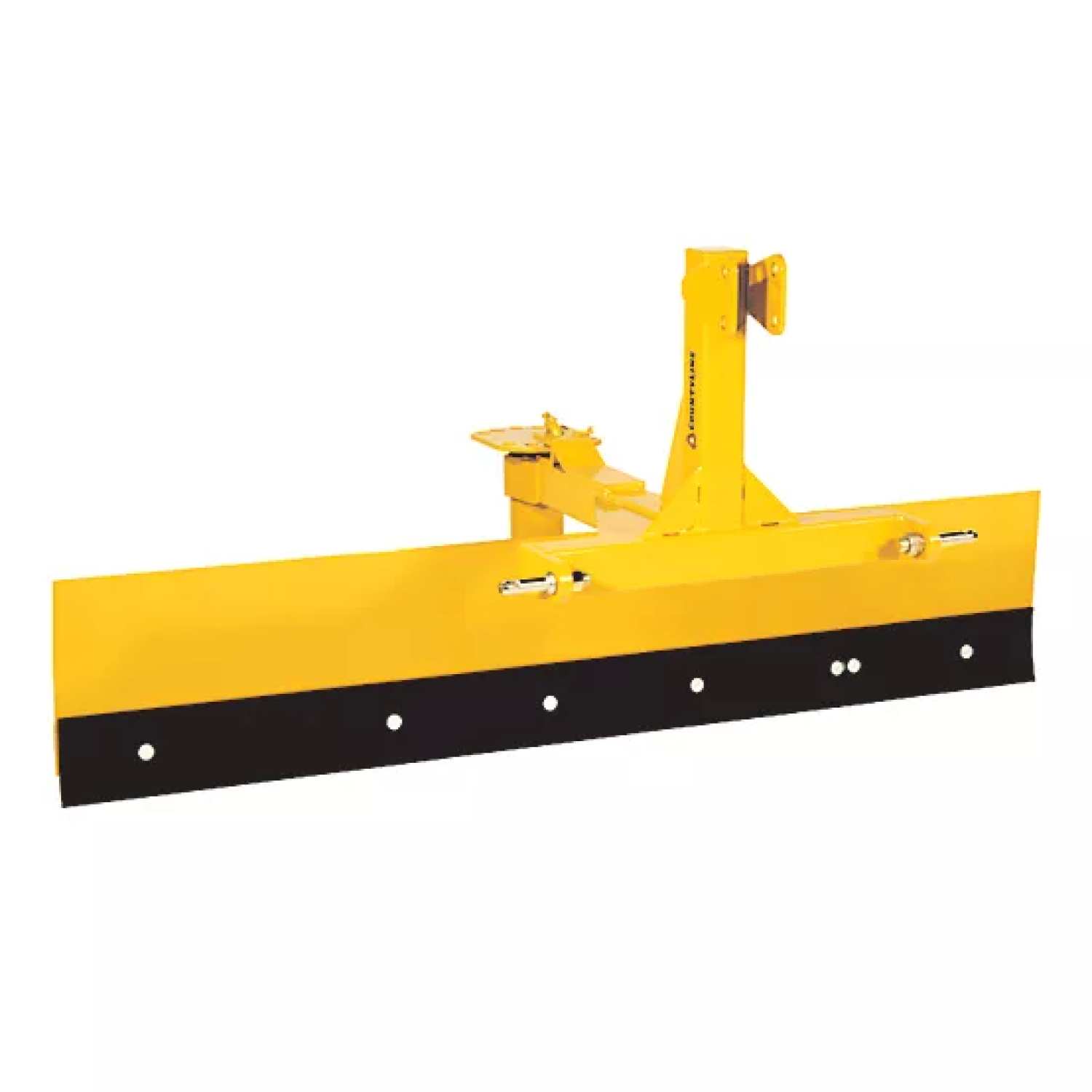

CountyLine 5 ft. Rear Grader Blade (Model GB5CL)
The CountyLine GB5CL 5 ft. Grader Blade provides an exceptionally rugged, tractor-mounted solution optimized for grading, leveling, and scraping materials such as gravel, sand, dirt, and snow. Proudly manufactured with premium heavy-duty alloy steel, this rear blade features an integrated Category 1 3-point hitch setup tailored for tractors rated between 20 HP and 45 HP. Outfitted with a convenient pull-pin mechanism allowing 5 forward and 5 reverse angle adjustments up to 45 degrees, its reinforced moldboard is completed by a 1/2-inch thick heat-treated replaceable steel cutting edge to guarantee commercial-grade lifespan longevity.
Technical Specifications
| Brand | CountyLine |
| Manufacturer Part Number (MPN) | GB5CL |
| Country of Origin | Made in USA |
| Hitch Type Compatibility | Category 1 (3-Point Linkage, pins included) |
| Minimum Tractor Power | 20 HP |
| Maximum Tractor Power | 45 HP |
| Working Width | 60 in. (5 ft.) |
| Moldboard Height | 15 in. |
| Moldboard Thickness | 0.25 in. (1/4 in. Steel) |
| Cutting Edge Parameters | 0.5 in. Thick Replaceable High-Carbon Steel |
| Angle Adjustment Mechanism | Pull-Pin Design (5 Forward Positions / 5 Reverse Positions) |
| Maximum Offset Left / Right | Up to 45 Degrees Left or Right |
| Product Measurements (L x W x H) | 40 in. x 60 in. x 38 in. |
| Product Net Weight | 81.65 kg (180.0 lbs) |
| Gross Freight Shipping Weight | 92.99 kg (205.0 lbs) |
| Warranty Protection | 1-Year Limited Manufacturer Warranty |
