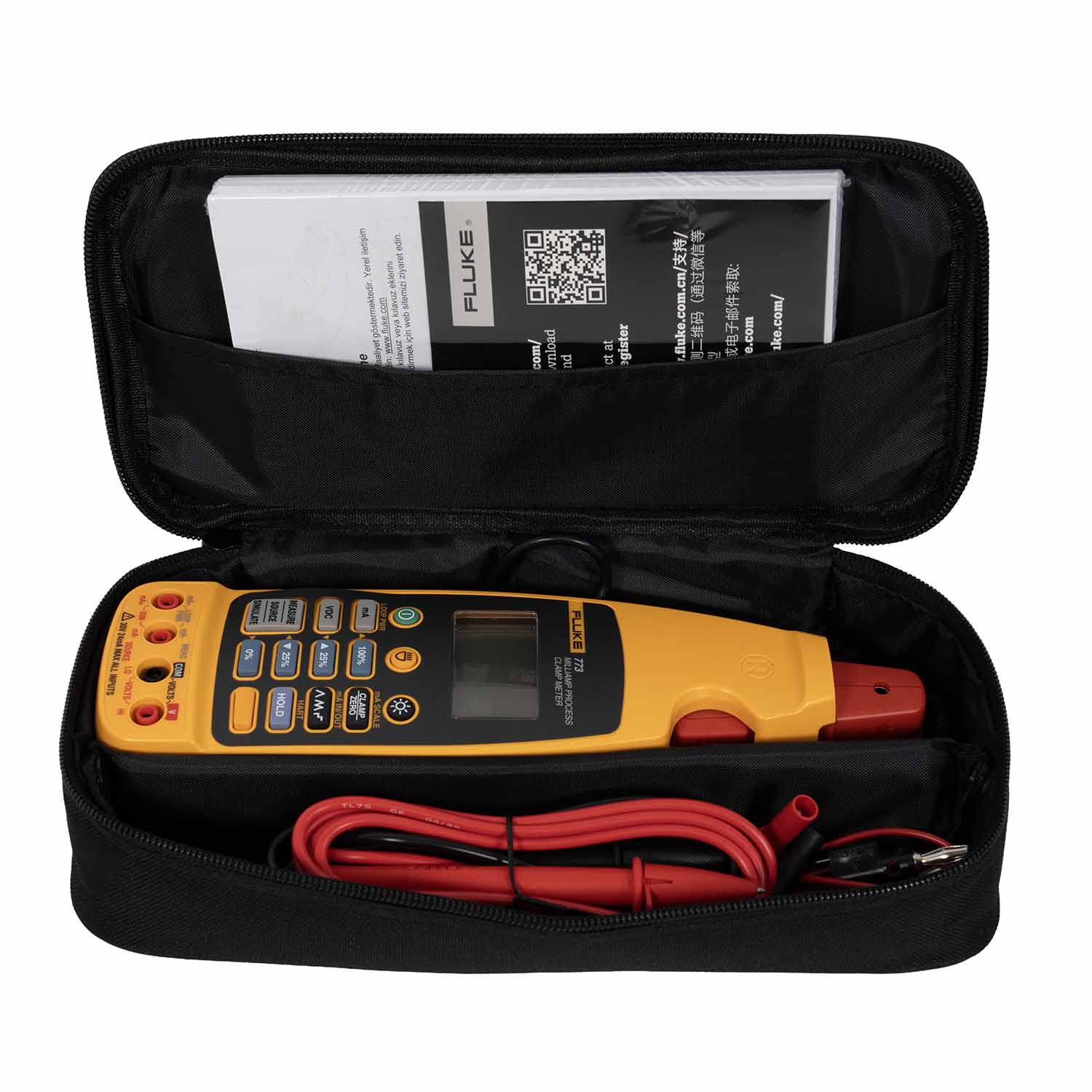

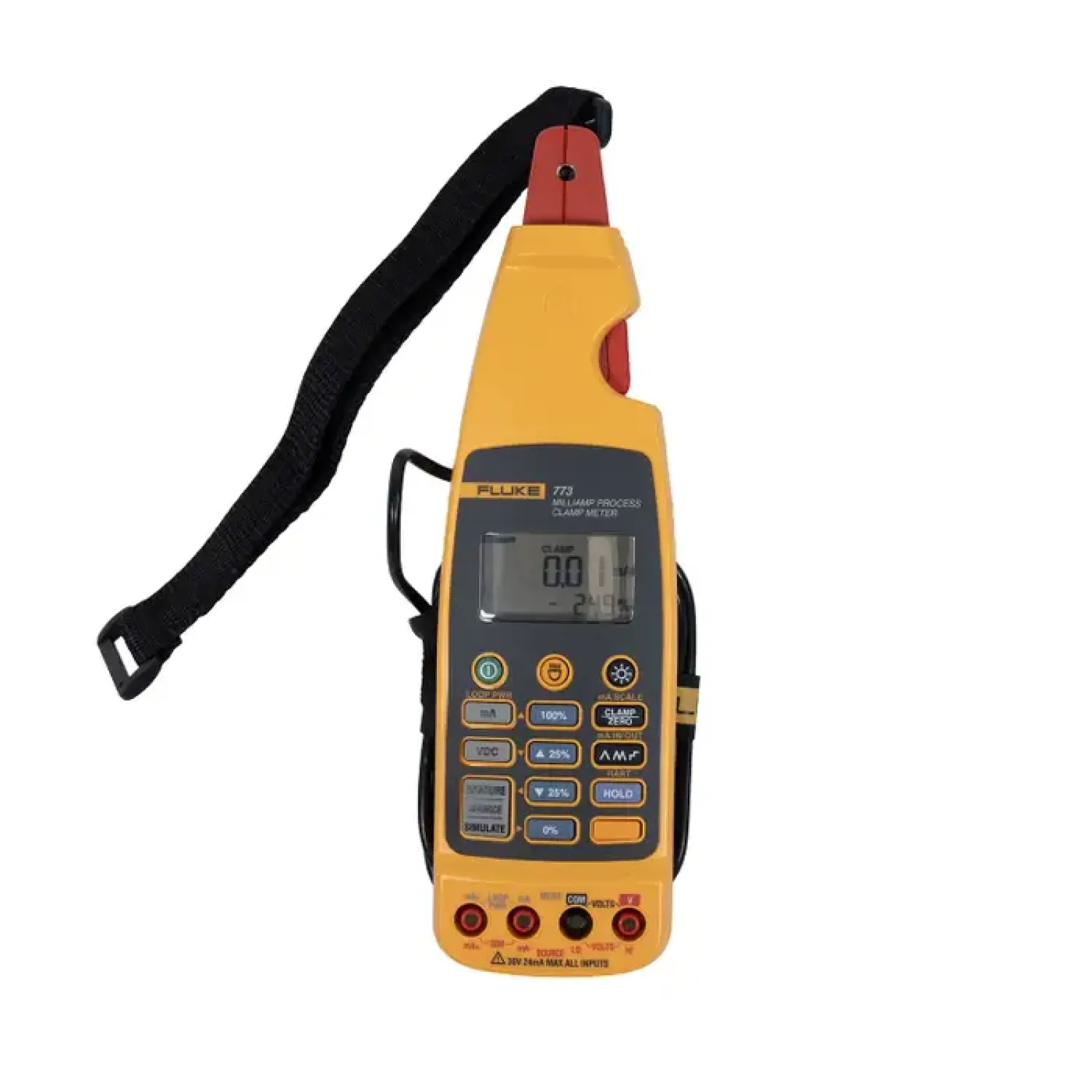

Fluke 773 Milliamp Process Clamp Meter
The Fluke 773 is the premier precision instrument designed specifically for process technicians who require maximum efficiency in 4-20 mA signal troubleshooting. Unlike traditional multimeters, the Fluke 773 allows you to measure output signals without breaking the loop or powering down the system, saving time and preventing costly downtime. In addition to non-contact measurement up to 99.0 mA, this tool is capable of DC voltage sourcing and measurement to verify 24V power supplies or I/O signals.
- Detachable Clamp: The clamp can be removed and connected via an extension cable for measurements in tight or narrow spaces.
- Simultaneous mA In/Out: Measure mA signals with the clamp while sourcing mA signals to test valve responses.
- 24V Loop Power: Provides power to energize and test transmitters directly within the circuit.
- Dual Backlit Display: Simultaneously displays both mA measurements and the percentage of the 4-20 mA span.
- Integrated Spotlight: Built-in LED light to illuminate wires in dark panel areas.
| mA Measurement (Clamp) | 0 to 99.0 mA (Non-contact) |
| mA Measurement (In-circuit) | 0 to 24.0 mA |
| DC Voltage Source | 0 to 10V DC (For 1-5V or 0-10V inputs) |
| DC Voltage Measurement | 0 to 30V DC |
| Output Options | Linear Ramp, 25% Step, Auto-change |
What is TruePower™ Technology? This feature provides a scaled mA output that allows you to send signals to a data logger without interrupting the live process.
Advantage of the Detachable Clamp? In highly crowded electrical panels, you can detach the clamp head to secure it to the target wire first, then read the results on the tool body from a more comfortable position.
Battery Efficiency: This tool is equipped with auto-power-off and backlight timeout functions to ensure longer battery life in the field.
THE ESSENTIAL TOOL FOR PROCESS CONTROL | GENUINE FLUKE RELIABILITY
