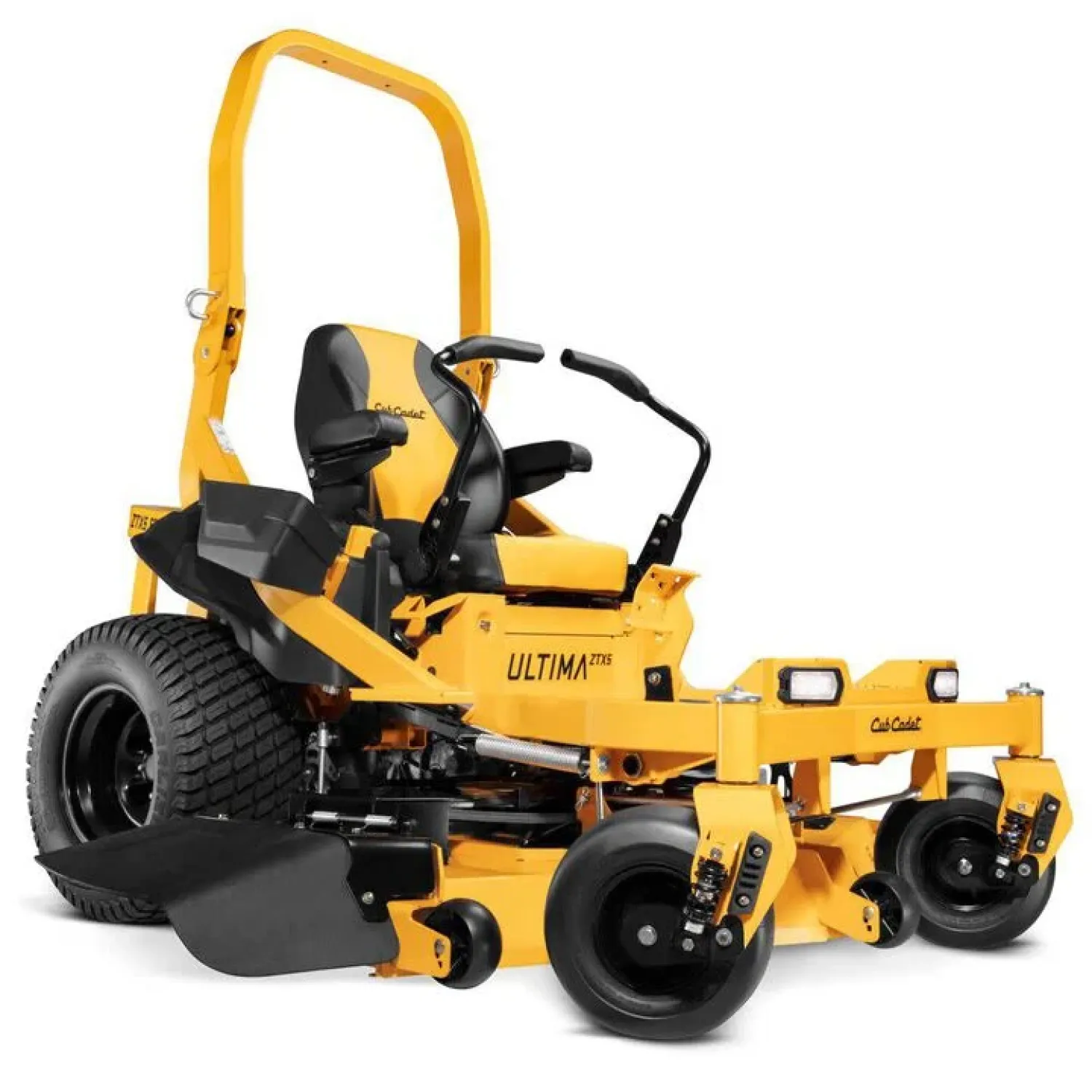

Cub Cadet Ultima Series ZTX5 60 in. 25 HP Commercial Zero-Turn Lawn Mower
The Cub Cadet Ultima Series ZTX5 Commercial Zero-Turn Mower delivers true professional-grade performance, maximum productivity, and stepped-up comfort for conquering the most demanding acreage challenges. Powered by a heavy-duty 25 HP Kohler® Command PRO® Commercial-Grade V-Twin engine (747cc), this elite machine is engineered with a fully welded continuous 2 in. x 3 in. tubular steel frame structure for supreme structural strength. Outfitted with an ultra-rugged **60-inch fabricated 10-gauge steel cutting deck** featuring a reinforced 7-gauge top plate shell, a premium high-back isolation suspension seat with armrests, and a protective Roll-Over Protection System (ROPS), it provides an elite power-to-strength configuration built for commercial property layout standards.
| Brand | Cub Cadet |
| Model Variant / MPN | ZTX5 60 (47AI2CBA010) |
| Engine Brand & Displacement | Kohler® Command PRO® Commercial V-Twin Cylinder / 747 cc |
| Net Power Output | 25.0 Gross HP |
| Steering Control Style | Dual Adjustment Lap-Bars with High-Comfort Premium Grips |
| Transmission System | Dual Hydro-Gear® ZT-3200™ Hydrostatic Charged Commercial Units |
| Cutting Deck Width / Style | 60 in. Fabricated Sloped-Nose 10-Gauge Triple-Blade Steel Deck with 7-Gauge Reinforcements |
| Cutting Height Parameters | 1.0 in. Minimum to 4.75 in. Maximum (17-Position Foot-Assist Pin Selection) |
| Forward / Reverse Max Velocity | 9.0 mph Forward / 4.0 mph Reverse |
| Fuel Reservoir Capacity | 5.5 Gallon Unleaded Gasoline Capacity (Large Side-Tank) |
| Safety Architecture | Standard Foldable Roll Over Protection System (ROPS Steel Frame) |
| Tire Dimensions (Front / Rear) | 13 in. x 6.5 in. - 6 in. Smooth Turf / 23 in. x 12.0 in. - 12 in. Premium Custom Turf |
| Product Overall Dimensions (L x W x H) | 84 in. x 71 in. (Deflector Down) x 70 in. (ROPS Up) |
| Product Net Dry Weight | 467.20 kg (1,030.0 lbs) |
| Gross Crated Shipping Weight | 528.43 kg (1,165.0 lbs) |
| Warranty Protection | 3-Year No-Hour Limit Commercial / Residential Warranty + Lifetime Frame Structural Warranty |
