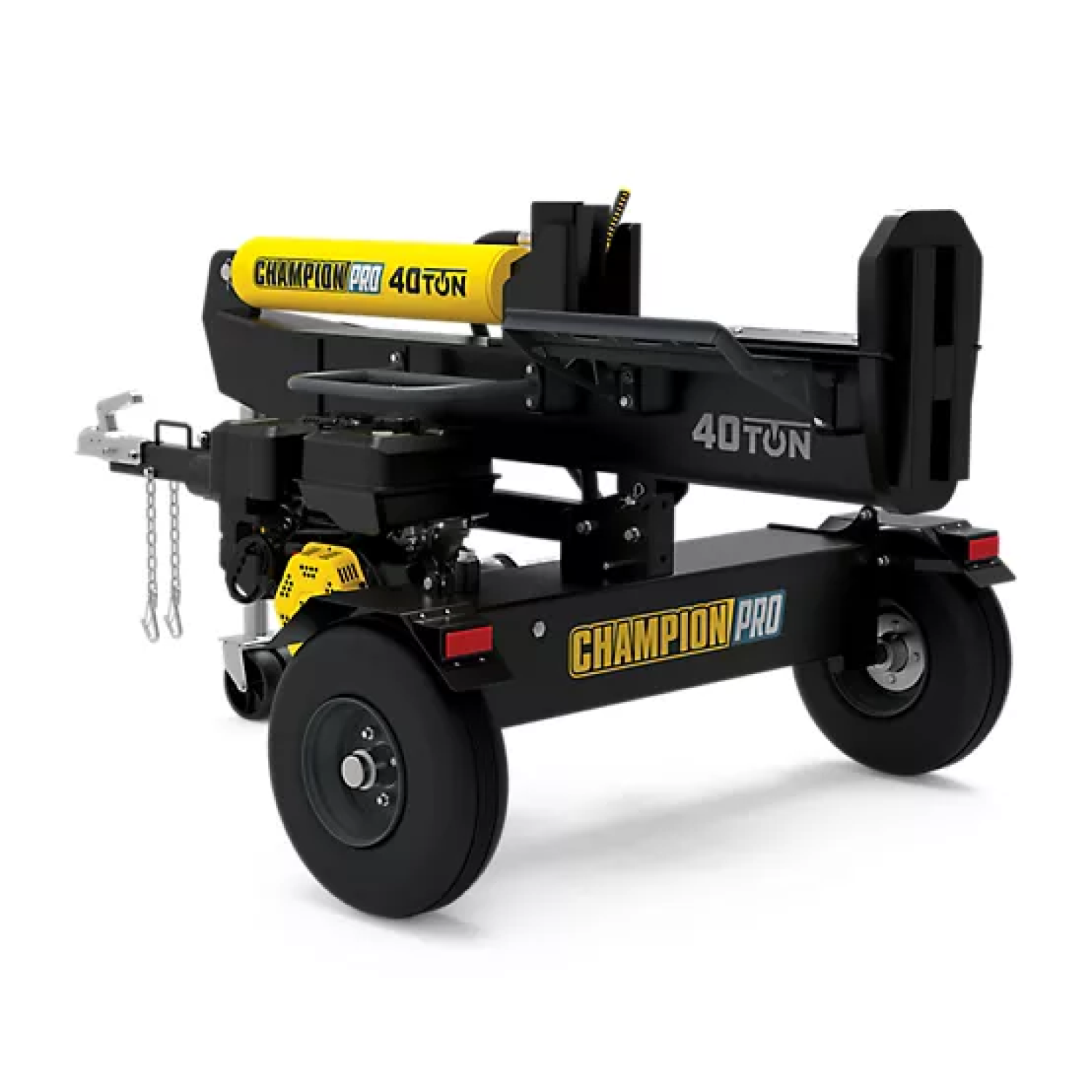

Champion PRO 40-Ton Horizontal/Vertical Full Beam Gas Log Splitter (Model 201091)
The Champion Power Equipment PRO 201091 40-Ton Log Splitter is a commercial-grade, full-beam workhorse specifically designed for professional loggers, firewood suppliers, and heavy-duty job sites. Driven by a massive, high-torque 338cc 4-stroke single-cylinder OHV engine, this machine delivers a crushing 40 tons of ram force combined with an ultra-fast 11.3-second cycle runtime. It transitions smoothly from horizontal to vertical configuration in three easy steps, safely processing logs up to 24 inches long and 100 pounds while utilizing an integrated steel engine guard, heavy-duty adjustable front support leg, and dual swivel wheels for rapid job-site leveling.
Technical Specifications
| Brand | Champion Power Equipment |
| Model Number / MPN | 201091 |
| Beam Type Architecture | Full Beam Design |
| Engine Displacement & Brand | 338cc 4-Stroke Single-Cylinder OHV Champion Engine |
| Splitting Capacity Force | 40-Ton |
| Cycle Performance Time | 11.3 Seconds (Over 300 Cycles per Hour) |
| Hydraulic Pump & Flow Rate | 2-Stage Pump / 24.3 GPM Flow Velocity Rate (3600 Max PSI) |
| Hydraulic System Oil Volume | 12 Gallon Total System Capacity (10 Gallon Tank Capacity) |
| Maximum Log Capacity Dimensions | 24 in. Max Length x 100 lb. Max Weight Threshold |
| Operation Orientations | Dual Mode: Quick Horizontal to Vertical Conversion |
| Wedge & Cylinder Scale | 9 in. Hardened Steel Single Wedge / 5 in. Cylinder Diameter |
| Towing Fleet Parameters | 18 in. Pneumatic Tires; 2 in. Ball Hitch; Fenders Included (Max 70 mph) |
| Structural Safety Features | Steel Engine Guard, Low-Oil Shutoff Sensor, Auto-Return Valve, Log Catchers |
| Fuel & Oil Tank Volume | 1.45 Gallon Gasoline / 1.2 Quart Engine Oil Capacity (10W-30) |
| Product Measurements (L x W x H) | 87.3 in. x 55.6 in. x 42.7 in. (221.7 x 141.2 x 108.5 cm) |
| Product Net Weight | 305.04 kg (672.5 lbs) |
| Gross Freight Shipping Weight | 347.00 kg (765.0 lbs) |
| Warranty Coverage | 2-Year Limited Warranty with Free Lifetime Technical Support |
